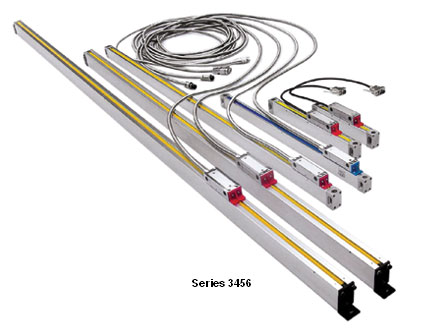

SERIES 3456

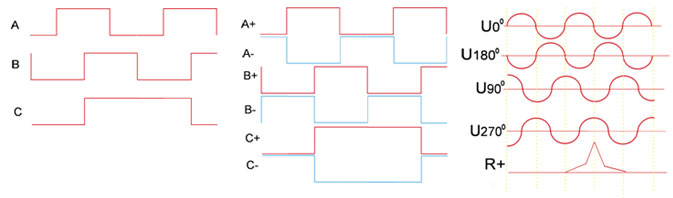

We also can produce order to made linear scale with your design. • Accuracy(at 20ºC±1ºC) of standard type:    ±5µm(rang:50-500mm); ±8µm(rang:500-1000mm); ±35µm(rang:1000-2000mm); ±50µm(rang:2000-3000mm) • Accuracy(at 20ºC±1ºC) of high-accuracy type:    ±3µm(rang:50-500mm); ±5µm(rang:500-1000mm); ±24µm(rang:1000-2000mm); ±34µm(rang:2000-3000mm) • Optical scale grating pitch:20µm   • Dust/water protection level:IP53   • Output wave form: TTL square wave,EiA-422-A,~1Vpp
