SERIES 241, 242 — for NPT, NPTR, NPTF Screw Thread
• Conformed standard: FED-STD-H28/7, FED-STD-H28/8(for dry seal), ANSI/ASME B1.20
• Left hand available upon request.
• Plug gage with handle.
• Packing in individual plastic box or carton.

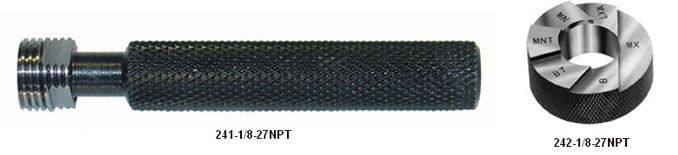

• Order No. Example: Plug set: 241-1/8-27NPT (241-Nominal size)
Ring gage: 242-1/8-27NPT (242-Nominal size)
