SERIES 311, 312 — for Tr Screw Thread
• Conformed standard: DIN103
• Class for plug gage: 7H, 8H, 9H; Class for ring gage: 7c, 8c, 9c, 7e, 8e, 9e
• Left hand available upon request.
• Special sizes available upon request.
• Large sizes available upon request.
• Packing in individual plastic box or carton.

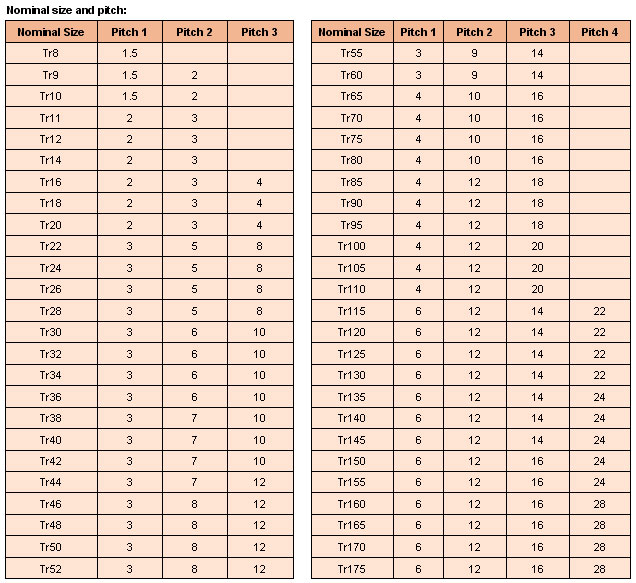

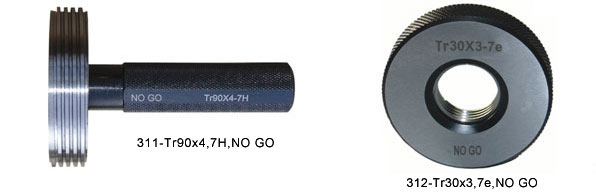

• Order No. Example: Plug set: 311-Tr90x4, 7H, NO GO (311-Nominal size and pitch, class, type: GO or NO GO)
Ring gage: 312-Tr30x3, 7e, NO GO (312-Nominal size and pitch, class, type: GO or NO GO) |
Tr: Metric Trapezoidal thread
