SERIES 251,252 — for ACME Screw Thread
• Conformed standard: FED-STD-H28/12, ANSI/ASME B1.5
• Class: 2G, 3G, 4G
• Left hand available upon request.
• Special sizes available upon request.
• Large sizes available upon request.
• Packing in individual plastic box or carton.

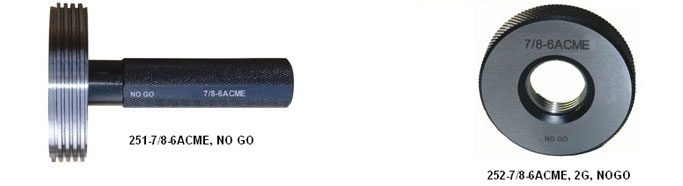

• Order No. Example: Plug set: 251-7/8-6ACME, 2G, GO
(251-Nominal size, class，type: GO or NO GO)
Ring gage: 252-7/8-6ACME, 2G, NO GO
(252-Nominal size, class, type: GO or NO GO)
ACME: American Trapezoidal Thread Gage
|
 |
