SERIES 8150 — Interchangeable Rod Type

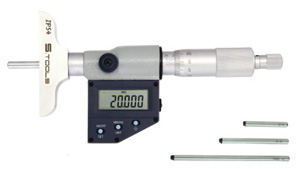

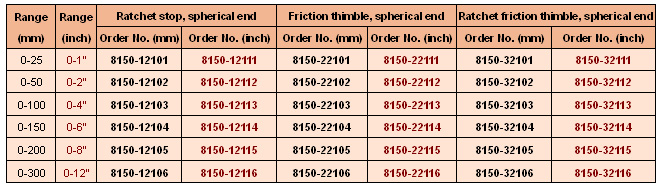

8150-12103: Ratchet stop, spherical end
FEATURES
• Interchangeable flat or spherical end rods are optional.
• The rods length can be adjusted in 25mm increments.
• No zero-resetting need after change rods correctly.
• Display data is origin absolute measurement after changing battery.
• Origin starting zero point setting, clock, power on/off.
• Inch/mm conversion at any spindle position,
abs. and inc. conversion at any spindle position.
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Ratchet stop, friction thimble or ratchet friction thimble
for constant measuring force.
• Graduation of micrometer head: 0.01mm or 0.0001"
• Resolution: 0.001mm(Metric); 0.00005"(Inch)

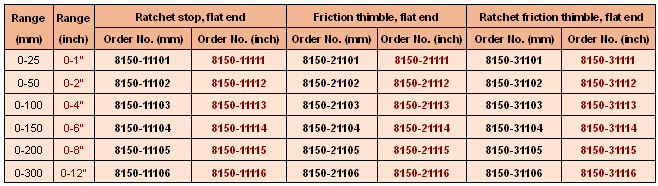

• Order No.8150-**1** with size A=63mm; Order No.8150-**2** with size A=101.5mm.
Dimension and Accuracy:
 |
* Excluding quantizing error |
 |
