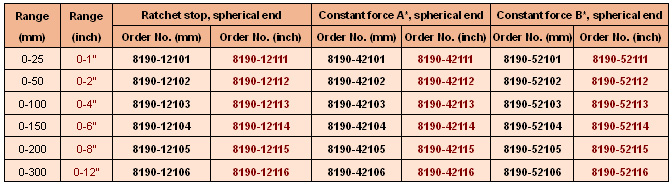

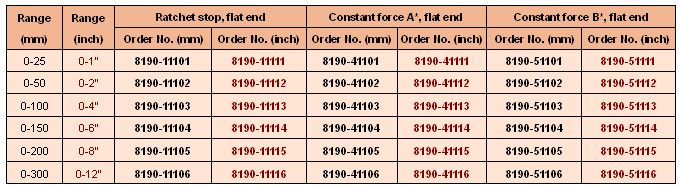

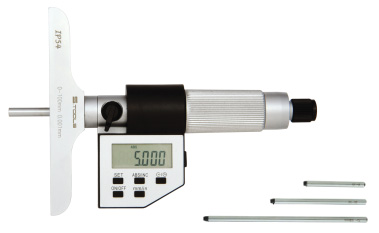

FEATURES • Interchangeable flat or spherical end rods are optional. • The rods length can be adjusted in 25mm increments. • No zero-resetting need after change rods correctly. • Display data is origin absolute measurement after changing battery. • Origin starting zero point setting, clock, power on/off. • Inch/mm conversion at any spindle position, abs. and inc. conversion at any spindle position. • RS232 output port. Connecting cable: P1103 or P1104 (Optional) • One SR44 cell. Power consumption<35μA. Auto power off. • Alarm: low voltage, Counting value composition error • Ratchet stop, ratchet stop and ratchet friction thimble or ratchet stop and friction thimble for constant measuring force. • Resolution: 0.001mm(Metric); 0.00005"(Inch) • Order No.8190-**1** with size A=63mm; Order No.8190-**2** with size A=101.5mm.
* Constant force A: Ratchet stop and ratchet friction thimble * Constant force B: Ratchet stop and friction thimble
