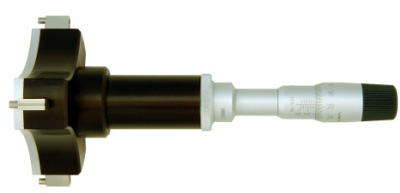

SERIES 8502 — L2 Type
8502-13021 |
 |
FEATURES
• Three-point model.
• Carbide-tipped measuring faces.
• Measuring heads are interchangeable.
• Standard setting ring are optional.
• Ratchet stop for constant force.
• Aluminum body, Anticathode-oxidation surface or painted surface are optional.
• Graduation: 0.005mm or 0.0002"
• Extension rod (length: 150mm or 6" ) for deep holes.

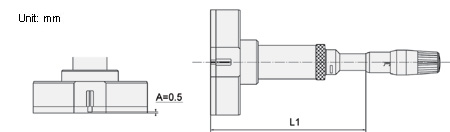

• Dimension: L1=145mm/5.8", A=0.5mm/0.02"
• Order No.8502-2**** with titanium-plated anvils.
• With carry case.
*Titanium-plated anvils optional and Order No.8502-2****
A* surface: Anticathode-oxidation surface B* surface: Painted surface
