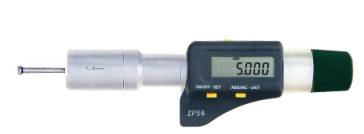

| Digimatic Internal Micrometers |
SERIES 8505 — S1 Type
8505-12005
FEATURES
• Two-point model.
• Supplied with standard setting ring.
• Ratchet stop for constant force.
• Chrome-plated surface.
• Origin starting zero point setting, power on/off.
• Inch/mm conversion at any spindle position,
abs. and inc. conversion at any spindle position.
• IP54, Standard: DIN863/1,DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Resolution: 0.001mm(Metric); 0.00005”(Inch)
• Accuracy: 0.004mm or 0.00016”
• With carry case.
