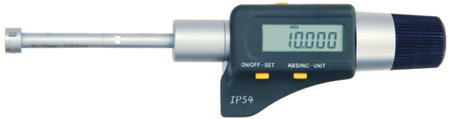

| Digimatic Internal Micrometers |
SERIES 8505 — S2 Type

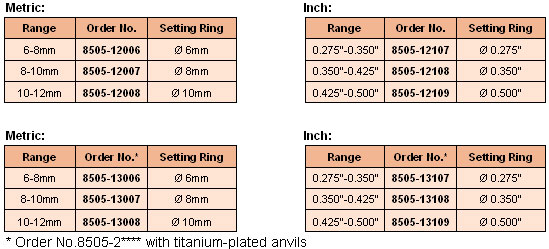

8505-12008
FEATURES
• Three-point model.
• Supplied with standard setting ring.
• Ratchet stop for constant force.
• Chrome-plated surface.
• Origin starting zero point setting, power on/off.
• Inch/mm conversion at any spindle position,
abs. and inc. conversion at any spindle position.
• IP54, Standard: DIN863/1,DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Accuracy: 0.004mm or 0.00016"
• Extension rod (length: 100mm or 4" ) for deep holes.
• Dimension (for order No. 8505-12***): L1=53.5mm/2.14”, A=0.5mm/0.02"
• Dimension (for order No. 8505-13***): L1=54.5mm/2.18”, A=1.5mm/0.06"
• With carry case.
