| Digimatic Internal Micrometers |
SERIES 8505 — M Type

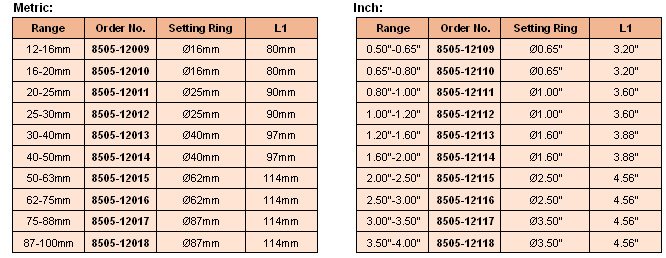

8505-12013
FEATURES
• Three-point model.
• Carbide-tipped measuring faces.
• Supplied with standard setting ring.
• Ratchet stop for constant force.
• Chrome-plated surface.
• Origin starting zero point setting, power on/off.
• Inch/mm conversion at any spindle position, abs. and inc. conversion at any spindle position.
• IP54, Standard: DIN863/1,DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Accuracy: 0.004mm or 0.00016" (for range up to 40mm/1.6"); 0.005mm or 0.0002" (for range over 40mm/1.6")
• Extension rod (length: 150mm or 6" ) for deep holes.
• Dimension: A=0.5mm/0.02"

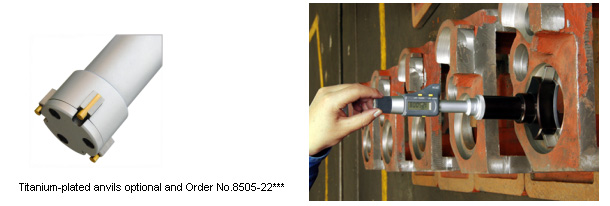

• Order No.8505-2**** with titanium-plated anvils.
• With carry case.
Standard delivery with carry case
