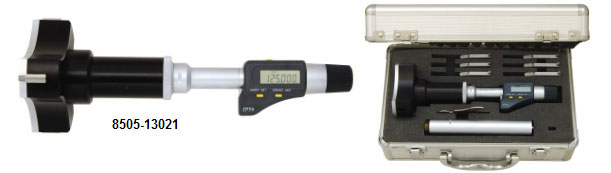

| Digimatic Internal Micrometer |
SERIES 8505 — L2 Type
Standard delivery with carry case
FEATURES
• Three-point model.
• Carbide-tipped measuring faces.
• Measuring heads are interchangeable.
• Standard setting ring are optional.
• Ratchet stop for constant force.
• Aluminum body, Anticathode-oxidation surface or painted surface are optional.
• Origin starting zero point setting, power on/off.
• Inch/mm conversion at any spindle position, abs. and inc. conversion at any spindle position.
• IP54, Standard: DIN863/1,DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Extension rod (length: 150mm or 6" ) for deep holes.

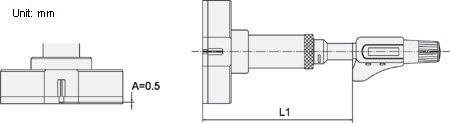

• Dimension: L1=150mm/6", A=0.5mm/0.02"
• Order No.8505-2**** with titanium-plated anvils.
• With carry case.
*Titanium-plated anvils optional and Order No.8505-2****
A* surface: Anticathode-oxidation surface B* surface: Painted surface
