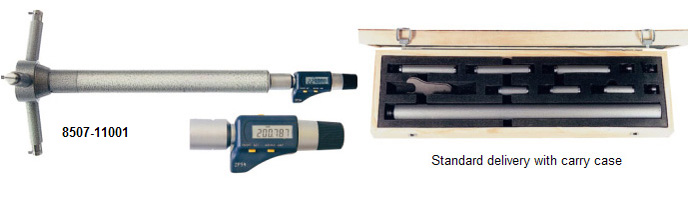

| Digimatic Internal Micrometers |
SERIES 8507 — With Interchangeable Measuring Rod
FEATURES
• With large range and for deep holes, three-point model.
• Large measuring range by interchangeable measuring rods.
• Carbide-tipped measuring faces.
• Supplied with standard setting ring.
• Ratchet stop for constant force.
• Painted surface.
• Origin starting zero point setting, power on/off.
• Inch/mm conversion at any spindle position, abs. and inc. conversion at any spindle position.
• IP54, Standard: DIN863/1,DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Extension rods for deep holes.
• No zero-resetting need after change rod correctly.
• Order No.8507-2**** with titanium-plated anvils.
• With carry case.

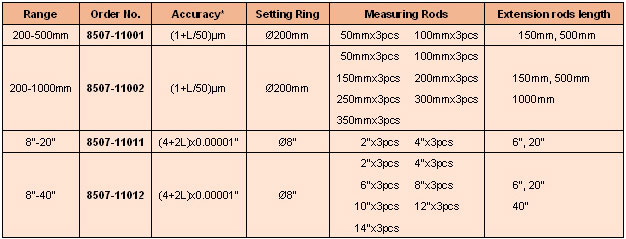

*L=max. measuring length (mm or inch)
*Titanium-plated anvils optional and Order No.8507-2****
