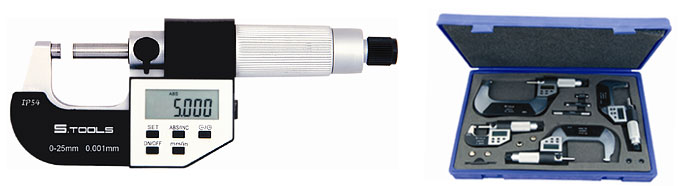

| Digimatic Outside Micrometer |
SERIES 8103

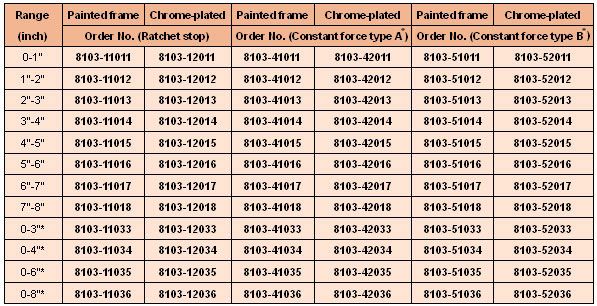

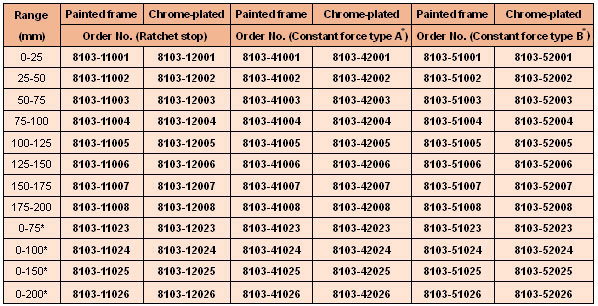

8103-42001: Constant force type A, chrome plated frame 8103-42024
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Display data is origin abs. result after changing battery
• Origin starting zero point setting, clock, power on/off,
• Inch/mm conversion, Abs. and inc. conversion.
• IP54, Standard: DIN863/1, DIN40050/IEC529
• RS232 output port. Connecting cable: P1103 or P1104 (Optional)
• One SR44 cell. Power consumption<35μA, Auto power off.
*Micrometer set with carry case
*Constant force type A=Ratchet stop and Ratchet friction thimble, type B=Ratchet stop and friction thimble
|
*Micrometer set with carry case
*Constant force type A=Ratchet stop and Ratchet friction thimble, type B=Ratchet stop and friction thimble
|

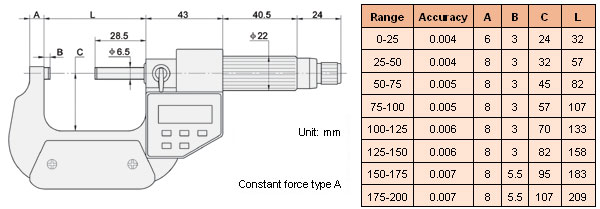

Dimension and Accuracy:
