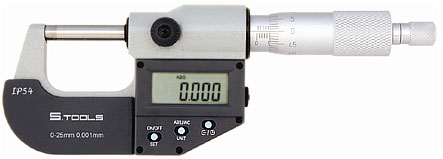

| Digimatic Outside Micrometer |
SERIES 8104—IP54,Type A
8104-11001: Ratchet stop, type A (IP54)
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Display data is origin abs. result after changing battery
• Inch/mm conversion, Abs. and inc. conversion.
• RS232 output port. Connecting cable: P1102 (Optional)
• Resolution of micrometer head:0.01mm or 0.0001"
• Origin starting zero point setting, clock, power on/off,
• IP54, Standard: DIN863/1, DIN40050/IEC529
• One SR44 cell. Power consumption<35μA, Auto power off
*Micrometer set with carry case

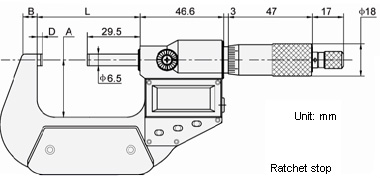

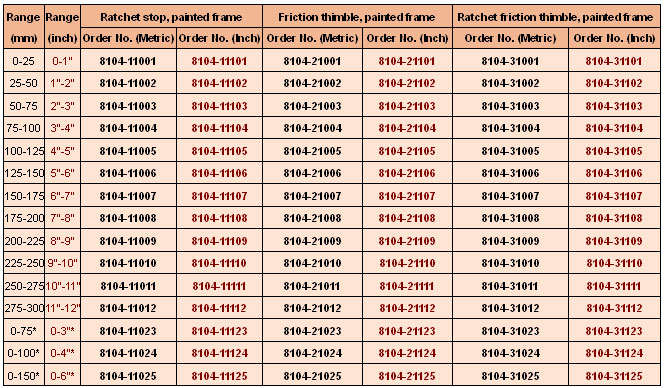

Dimension and Accuracy:
