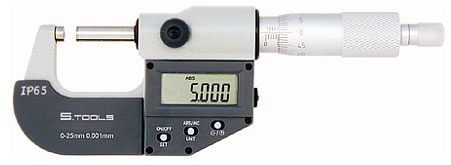

| Digimatic Outside Micrometer |
SERIES 8104—IP65,Type C

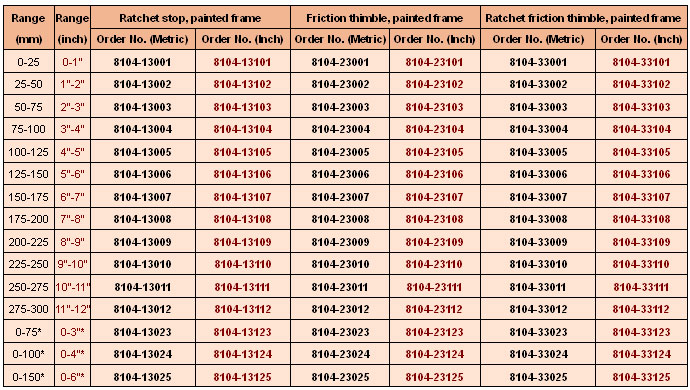

8104-13001: Ratchet stop, type C (IP65)
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Resolution of micrometer head:0.01mm or 0.0001"
• Display data is origin abs. result after changing battery
• Origin starting zero point setting, clock, power on/off,
• Inch/mm conversion, Abs. and inc. conversion.
• IP65, Standard: DIN863/1, DIN40050/IEC529
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA, Auto power off.
*Micrometer set with carry case

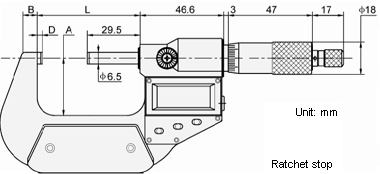

Dimension and Accuracy:
