SERIES 8308 — With Extension Anvil Collars

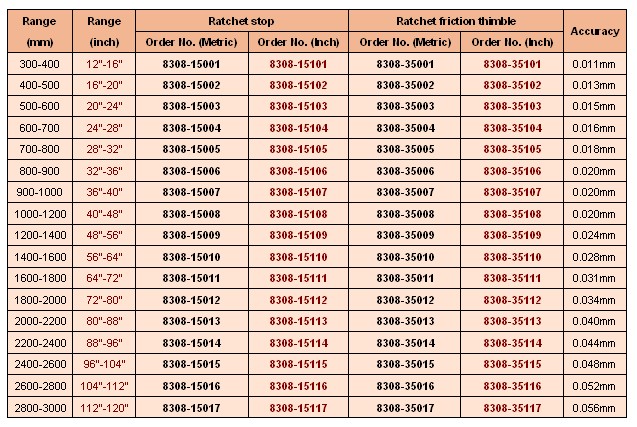

8308-15004 |
• Wide working range with extension anvils collars
• No-resetting need after change collars
• Standard collars: 25mm/1", 50mm/2"(Range≤1000mm/40")
50mm/2", 100mm/4"(Range＞1000mm/40")
• Painted pipe frame for light weight and good rigidity.
• Resolution: 0.01mm or 0.001" |
*For range≤1000mm/40", Travel of micrometer is 25mm/1", thread pitch of micrometer is 0.5mm/0.02"
*For range＞1000mm/40", Travel of micrometer is 50mm/2", thread pitch of micrometer is 1.0mm/0.04" |
