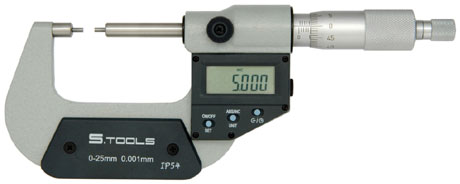

 Spline Micrometer

For measuring splined shafts, slots and keyways

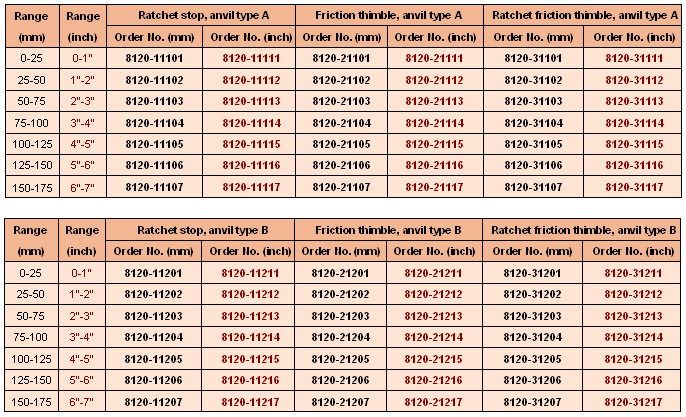

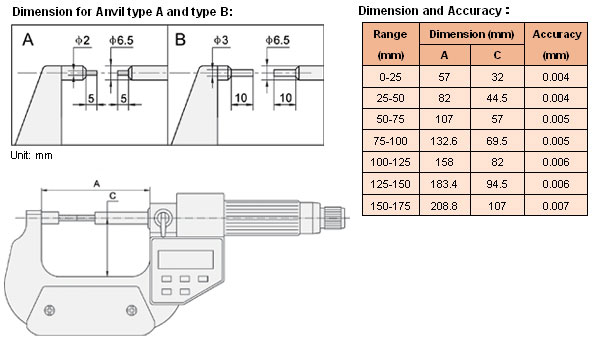

        8120-11101: Ratchet stop, painted frame, anvil type A

 IP54, Standard: DIN40050/IEC529.
 Resolution: 0.001mm (Metric); 0.00005"(Inch)
 Painted frame
 Digital Model same as series 8104-*1*** (8104,Type A)
