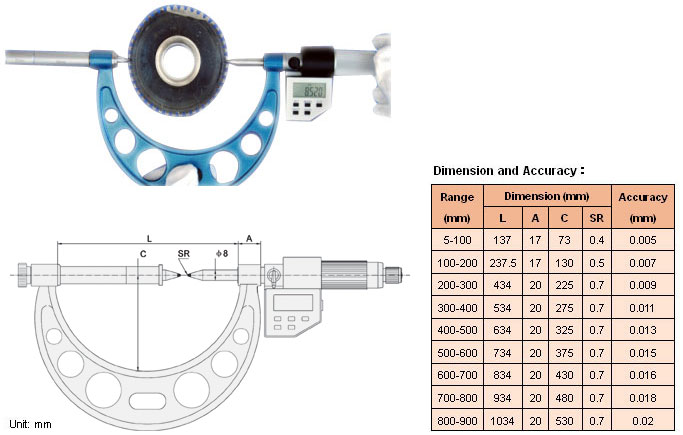

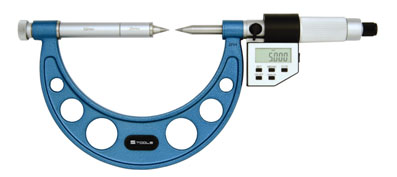

| Point Micrometer (with extension anvil collars*) |
For measuring hard-to-reach dimension, wide range with adjustable anvils
*No zero-resetting need after adjusting extension anvil collars corrctly

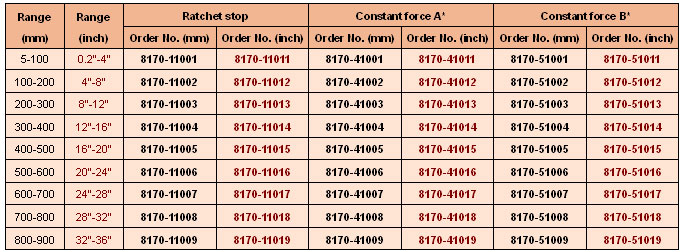

8170-41001: Constant force A, painted frame
• IP54, Standard: DIN40050/IEC529.
• Resolution: 0.001mm (Metric); 0.00005"(Inch)
• Painted frame
• Pipe frame is used if range over than 200mm/8"
• Digital Model same as series 8103
| *Constant force A: Ratchet stop and Ratchet friction thimble; Constant force B: Ratchet stop and friction thimble |
