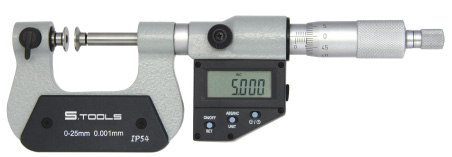

 Universal Micrometer

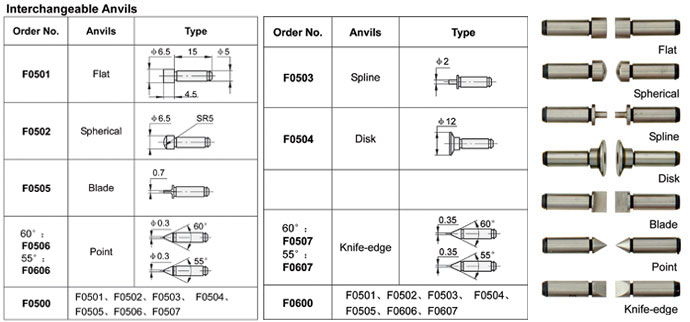

With a wide range of applications equipped with 7 pairs interchangeable anvils and spindles

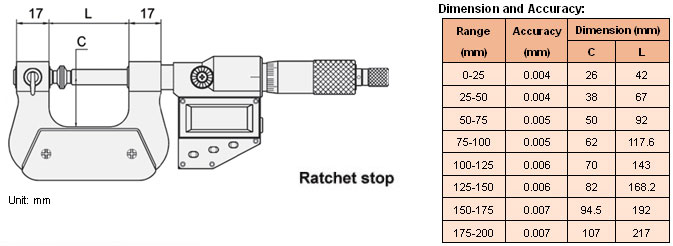

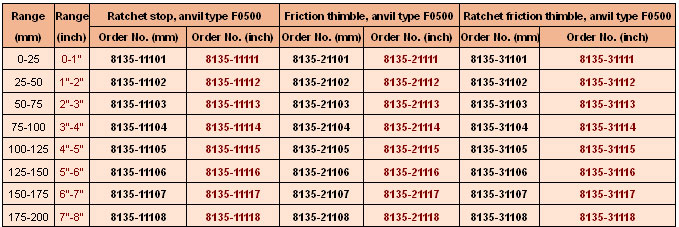

    8135-11101: Ratchet stop, painted frame (F0504 anvils)

IP54, Standard: DIN40050/IEC529.
Resolution: 0.001mm (Metric); 0.00005”(Inch)
Painted frame
Digital Model same as series 8104-*1***(8104,Type A)


*Order No.8135-**2** for anvil type F0600
