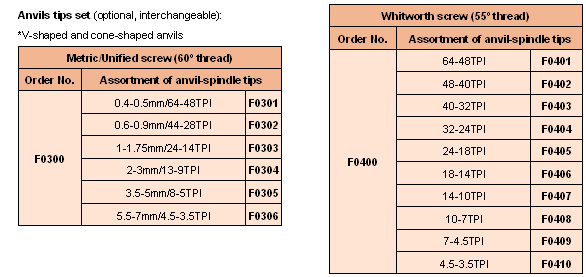

55º or 60º anvil tips, for measuring Metric/Unified screw or Whitworth screw
*V-shaped and cone-shaped anvils

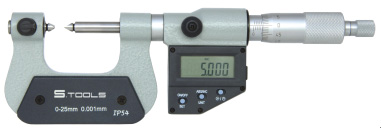

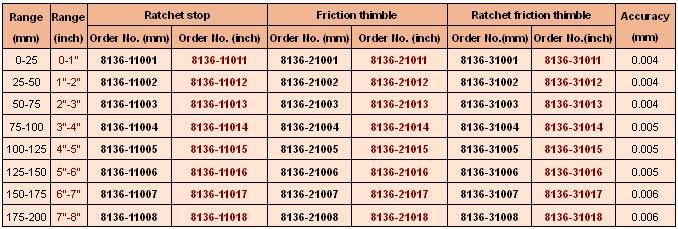

8136-11001: Ratchet stop, painted frame (F0301 anvils)
• IP54, Standard: DIN40050/IEC529. • Painted frame
• Resolution: 0.001mm (Metric); 0.00005”(Inch)
• Digital Model same as series 8104-*1*** (8104,Type A)
| *Order No.8136-*1**** with anvils F0300 *Order No.8136-*2**** with anvils F0400 |
