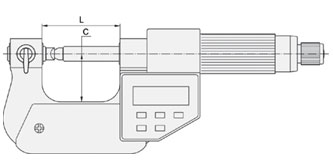

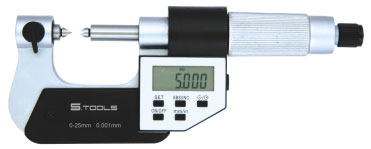

Screw Thread Micrometer (non-rotating spindle)
55º or 60º anvil tips, for measuring Metric/Unified screw or Whitworth screw
*V-shaped and knife-edged anvils

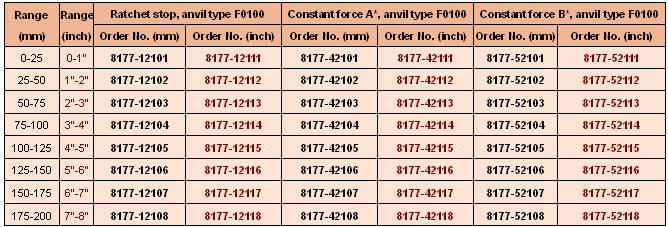

8177-42101:
Constant force A (F0101 anvils)
•
Without IP54 protect
•
Chrome-plated frame
•
Resolution: 0.001mm (Metric); 0.00005"(Inch)
•
Digital Model same as series 8103
*Order No.8177-**2** for anvil type F0200
*Constant force A: Ratchet stop and Ratchet friction thimble; Constant force B: Ratchet stop and friction thimble
<<
