SERIES 78
Specially-shaped workpieces can also be hold by use chuck block, thus make it possible to utilize chucks in stock

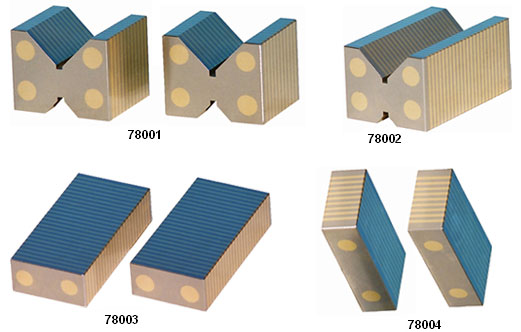

• The blocks are used in combination with magnetic chuck as an auxiliary tools to hold round bars and sheet-like
workpieces that are difficult to hold on the side faces only by chucking.
• The blocks are placed on a magnetic chuck to induce magnetism to hold workpieces, to induce on the top and
side face or V-face and side face.
• One set consists of a pair of blocks finished together.
(78002 & 78002-1 are available individually) |
* Above products are made of steel and copper
* Order No.7800□-1 are made of steel and Aluminum(P1=3.5，P2=3.0)
