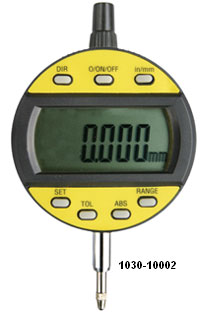

| Digimatic Dial Indicators |
SERIES 1030
• Non-contact Linear CAP measuring system.
• Origin starting zero point setting at any spindle position, mm/Inch conversion at any spindle position.
• GO/±NG judgment can be performance by setting upper and lower tolerance limits.
• Abs. and inc. conversion at any spindle position, and data hold.
• With data output port.
• With counting direction switch (for 1030-00001, 1030-00002).
• Max. response speed:1000mm/sec; Max measuring force:1.2N.
• Standard delivery with flat back and lug back optional.
• Power source: 1.55V SR44 1piece
• Operating temperature:0°C ~ ＋40°C; Relative humidity:≤80%
• Storage temperature: －20°C~＋70°C
• With carry case.

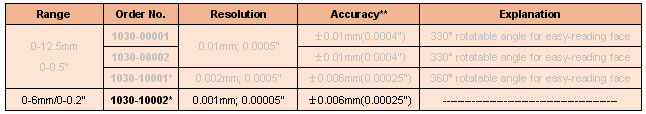

* With analog display ** Excluding quantizing error
