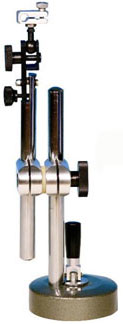

1085-11011
• Useful on granite plates or other non-magnetic smooth surface.
• ON/OFF lever for easy attaching or removing.
• With movement fine adjustment.
• Vacuum base dimension: Ø90mm, M8x1.25 center hole
• Ø80 rubber suction pad in the base.
• Main Pole: Ø16x210 (mm)
• Branch pole: Ø16x190 (mm)
• Clamp hole: Ø8.0/ Ø9.6 (mm), Dovetail 6.5 (mm)
• Vacuum power: 50kg
|
