SERIES 301, 302, 303 — for Metric Screw Thread
|
301-M6x1, 4H 302-Mx1, 4h,GO |
• Conformed standard: DIN13, ISO1502-96
• Left hand available upon request.

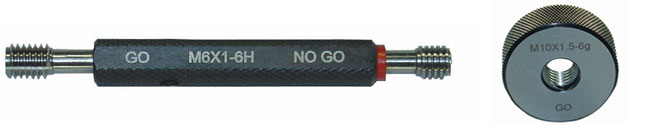

• Double end (GO+NG) plug gage with handle (Red-marked NG side).
• Special sizes and pitches available upon request.
• Large sizes available upon request.
• Packing in individual plastic box or carton.
• Thread setting gages are available and details for inquiry.

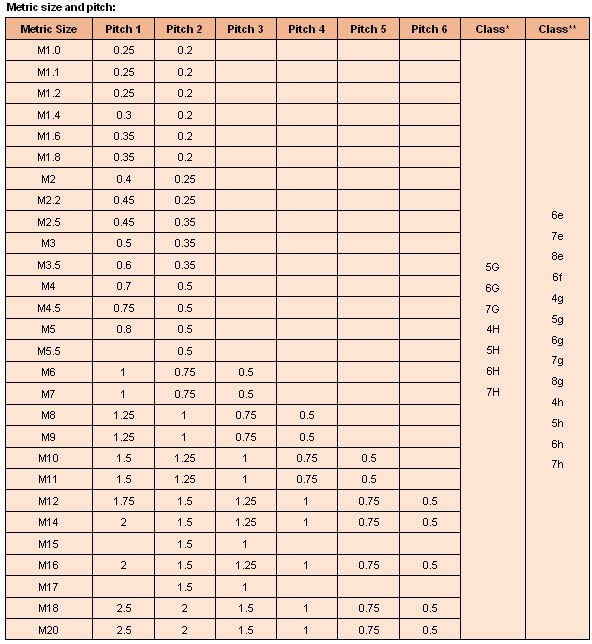

• Order No. Example: Plug set: 301-M6x1, 4H (301-Metric size and pitch, class)
Ring gage: 302-M6x1, 4h, GO (302-Metric size and pitch, class, type: GO or NO GO)
AGD ring gage: 303-M6x1, 4h, GO (303-Metric size and pitch, class, type: GO or NO GO) |
* For plug gage ** For ring gage | | | Clicks：8099 |  |
|
|
|
|
|
|
|
|
