| American Standard Thread Gage |
SERIES 201, 202, 203 — for UNC, UNF, UNEF, UN Screw Thread
• Conformed standard: ANSI/ASME B1.1-2003, FED-STD-H28
• Class for ring gage: 2A, 3A; Class for plug gage: 2B, 3B
• Left hand available upon request.
• Double end (GO+NG) plug gage with handle (Red-marked NG side).
• Special sizes available upon request.
• Large sizes available upon request.
• Packing in individual plastic box or carton.
• Thread setting gages are available and details for inquiry.

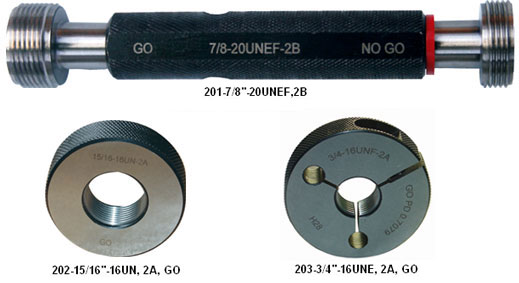

• Order No. Example: Plug set: 201-7/8"-20UNEF, 2B (201-nominal size and TPI, class)
Ring gage: 202-15/16"-16UN, 2A, GO (202-nominal size and TPI, class, type: GO or NO GO)
AGD ring gage: 203-3/4"-16UNF, 2A, GO(203-nominal size and TPI, class, type: GO or NO GO) |
