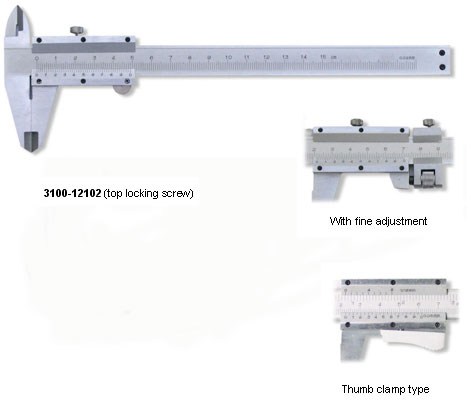

SERIES 3100 — Basic Model
FEATURES
• Can measure OD(outside diameter),ID(inside diameter),depth, and steps.
• The slider in screw frame.
• Different reading scales on vernier.
• Fine adjustment optional.
• Top locking screw type or thumb clamp type optional.
• Made of carbon steel or stainless steel.
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)

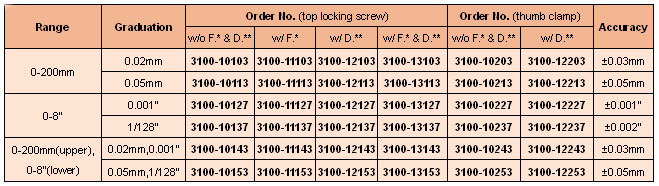

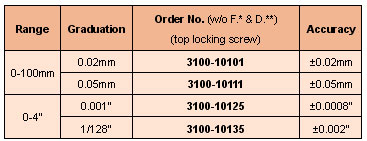

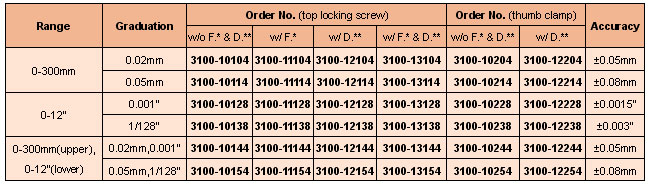

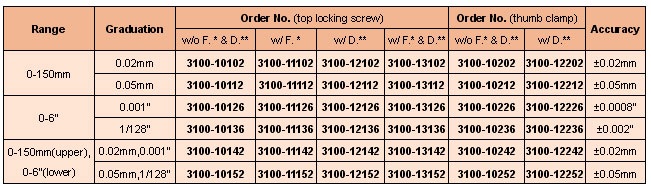

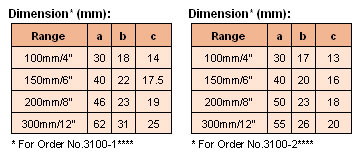

Order No.3100-1**** is made of carbon steel.
Order No.3100-2**** is made of stainless steel.
