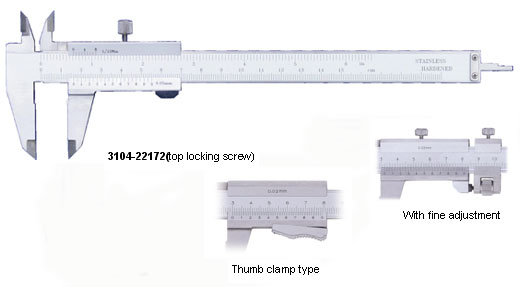

SERIES 3104, 3105 — Standard Model
FEATURES
• Can measure OD(outside diameter),ID(inside diameter),depth, and steps.
• The slider in mono-block frame.
• Different reading scales on vernier.
• Fine adjustment optional.
• Carbide-tipped jaw type caliper are also available (series 3105).
• Top locking screw type or thumb clamp type optional.
• Made of stainless steel.
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)
* Fine adjustment ** Depth bar (blade)

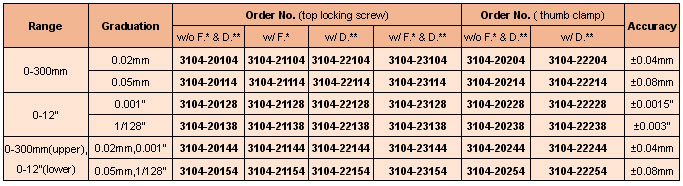

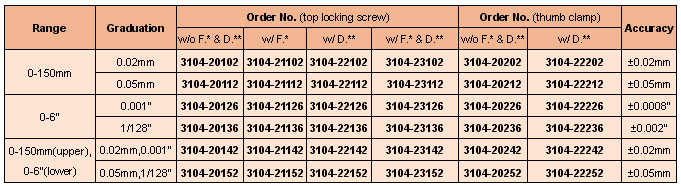

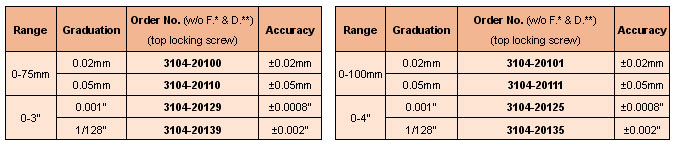

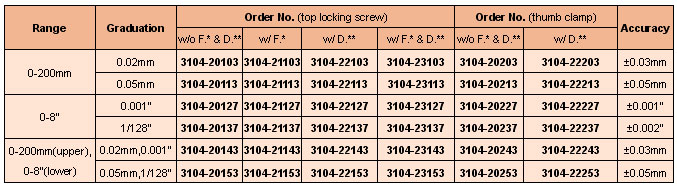

Order No.3104-2**** is with normal jaws.
Order No.3105-2**** is with carbide-tipped jaws.
