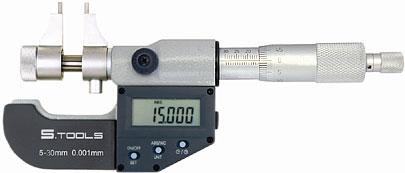

SERIES 8403—Caliper Type

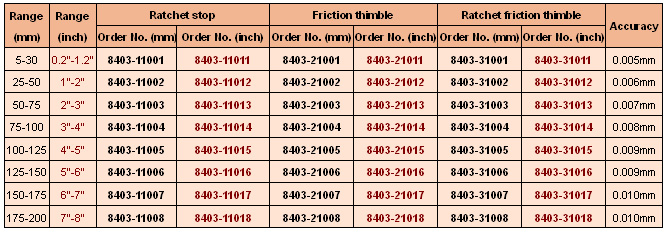

8403-11001: Ratchet stop
FEATURES
• Locking clamp for positive locking of spindle.
• With standard setting ring .
• Standard setting rings are optional for other models.
• Display data is origin absolute measurement after changing battery.
• Origin starting zero point setting, clock, power on/off.
• Inch/mm conversion at any spindle position, abs. and inc. conversion at any spindle position.
• RS232 output port. Connecting cable: P1102 (Optional)
• One SR44 cell. Power consumption<35μA. Auto power off.
• Alarm: low voltage, Counting value composition error
• Ratchet stop, friction thimble or ratchet friction thimble for constant measuring force.
• Graduation of micrometer head: 0.01mm or 0.0001"
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
