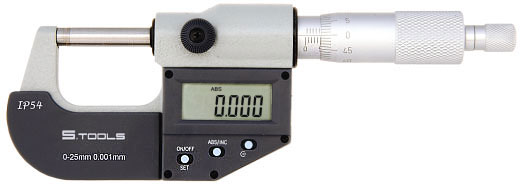

| Digimatic Outside Micrometer |
SERIES 8104—IP54,Type B
8104-12001: Ratchet stop, type B (IP54, and simple)
• Resolution: 0.001mm(Metric); 0.00005"(Inch)
• Display data is origin abs. result after changing battery
• Abs. and inc. conversion.
• One SR44 cell. Power consumption<35μA, Auto power off
• Resolution of micrometer head:0.01mm or 0.0001"
• Origin starting zero point setting, power on/off,
• IP54, Standard: DIN863/1,DIN40050/IEC529
• Without mm/inch conversion, without output,, without clock
*Micrometer set with carry case

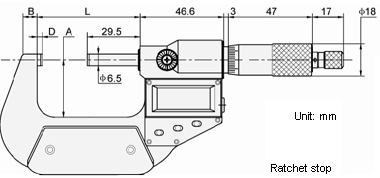

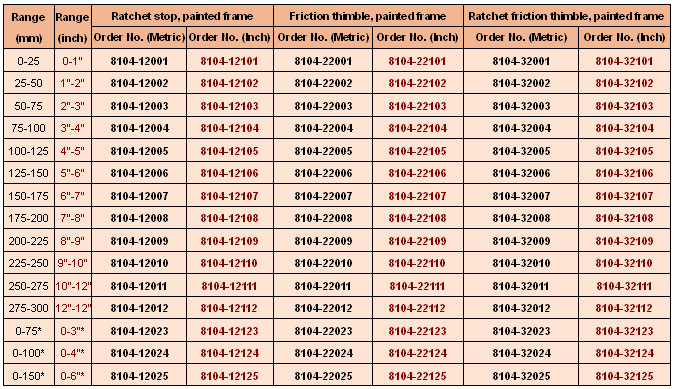

Dimension and Accuracy:
